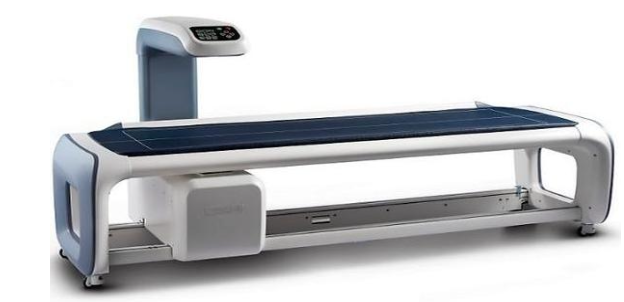

Osteosys Primus

Primus fanbeam

  • Helkrop DXA(Total body composition and Assessment)
  •  Narrow fan beam
  •  Skan område : Helkrop op til 150kg, Columna, Femur(Dual femur), Underarm, Lateral spine, LVA
  •  Skan areal : 2020 x 580mm / 2020 x 620mm(Optional)
  •  Skan tid : AP spine – 30Sec.(±2Sec.)
    Hofte – 25Sec.(±2Sec.)
    Underarm – 23Sec. (±2Sec.)
    Helkrop* : 7Min.(Ergonomic) / 11Min.(Standard mode)
    *Depends on height
    Automatic real one-scan
    Reproducibility : ≤1.0% C.V.
    Målte resultater : BMD, BMC, BMI, T-score, Z-score, Area, Total body BMD,Total body Composition(Fat / Lean / BMC), HA(Hip Analysis), Dual femur Total body composition And Various whole body assessmentOrthopedics / Pediatrics / FRAX / B-Scope(Body-Scope) / Color mapping / Ergonomic scan / Trend report / DICOM & PACSDimension : 2784 x 1045 x 1258mm(Standard) / 2284 x 1045 x 1258mm(SB) Table height : 650mm
  • TBS (Trabecular Bone Score) option
  • Dicom software option
    Weight : 210kg
    Power consumption : 110VAC / 220VAC(+/-10%)
